| ขั้นต่ำ: | 1 ชิ้น |
| ราคา: | 7000-100000 USD |
| บรรจุภัณฑ์มาตรฐาน: | กับภาพยนตร์และกล่องปกติ |
| ระยะเวลาการจัดส่ง: | 20 วันหลังจากฝาก |
| วิธีการชำระเงิน: | ที/ที |
| ความสามารถในการจัดหา: | 20ชุด/เดือน |
Advanced Industrial Multi-Axis Robotic Paint & Flash-Off Curing System
Accelerating Production Efficiency and Standardizing Quality for High-Volume Components
Introducing the Advanced Industrial Multi-Axis Robotic Paint & Flash-Off Curing System, designed by CoatTech Intelligent Equipment to maximize production efficiency and coating quality. Optimized for complex geometries such as automotive exterior panels, appliance housings, and large industrial castings, this system integrates advanced multi-axis robotics, sequential processing zones, and state-of-the-art environmental controls. It ensures consistent, high-performance finishes across varying component shapes while significantly accelerating throughput.
System Overview

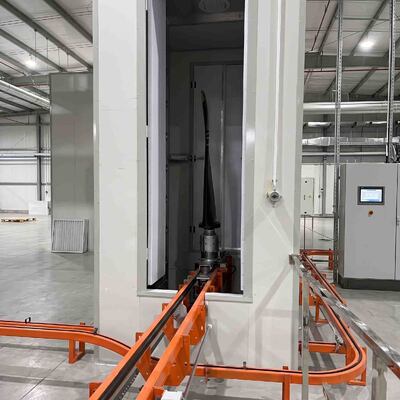

Our multi-stage robotic painting line is built around a heavy-duty, floor-mounted chain-on-flat or skid conveyor system, allowing for synchronous part transport and precision positioning. Each part is mounted on a customizable fixture that interacts seamlessly with multiple robotic spray stations. Housed within an insulated, modular clean-room grade enclosure, the system ensures zero contamination throughout the entire application and drying sequence. Depending on production needs, the line can be configured with highly efficient modular dry-filter booths or our advanced water wash filtration technology to capture overspray and maintain a safe, compliant working environment.
Key Features & Benefits
1.Integrated Multi-Axis Robotic Spraying: Multiple robotic arms with advanced electrostatic atomizers ensure complex geometries are coated with exceptional precision and repeatability, reducing paint waste and improving finish quality consistency.
2.Sequential Multi-Zone Process Flow: Parts seamlessly advance through dedicated zones (pre-heat, paint application, flash-off, and curing) without re-handling, optimizing material flow and minimizing contamination risk.
3.High-Insulation Enclosure: Construct with high-insulation panel architecture and integrated automated doors to maintain strict temperature and clean-room level particulate control throughout the process.
4.Configurable Filtration (Modular Dry or Water Wash): Tailored filtration solutions efficiently capture paint overspray, protecting operators and the environment while optimizing maintenance schedules.
5.Intuitive HMI and PLC Control: A central Human-Machine Interface with touchscreen provides real-time control, monitoring of conveyor speed, spray parameters, airflow velocity, and detailed data logging for quality assurance.
Technical Specifications
| Parameter | Specification |
| System Type | Automated Multi-Axis Robotic Paint & Curing Line |
| Primary Applications | Automotive Exterior Panels, Appliances, Large Industrial Castings |
| Conveyor Track Type | Heavy-Duty Chain-on-Flat, Skid, or Floor-Mounted Chain Conveyor |
| Robotic Stations | Multiple Manipulators with Advanced Atomizers |
| Booth Enclosure Material | Modular Composite or Double-Walled Steel Panels (e.g., EPS/Rockwool core) |
| Door System | Integrated Automatic Roll-up Doors between Process Zones |
| Filtration Technology | Multi-Stage Dry Filtration with HEPA Options OR Water Wash System |
| Control System | Central PLC with Touchscreen HMI and Data Logging |
| Airflow Design | Downdraft Laminar Airflow with Air Re-circulation Options |
| Curing Capability | Integrated IR (Infrared) and Forced Convection Ovens (e.g., Up to 200掳C) |
| Load Capacity per Hanger | Customized based on component engineering requirements |
Need a Custom Solution for Your Plant?
Every manufacturing layout is unique. CoatTech specializes in designing and manufacturing turnkey intelligent finishing solutions
tailored to your exact facility dimensions and production targets.
Contact us today for layout drawings, technical proposals, and price calculations.
