Water curtain spray cabinet, cyclone water curtain spray room,paint mist purification , ECO equipment
Product Introduction

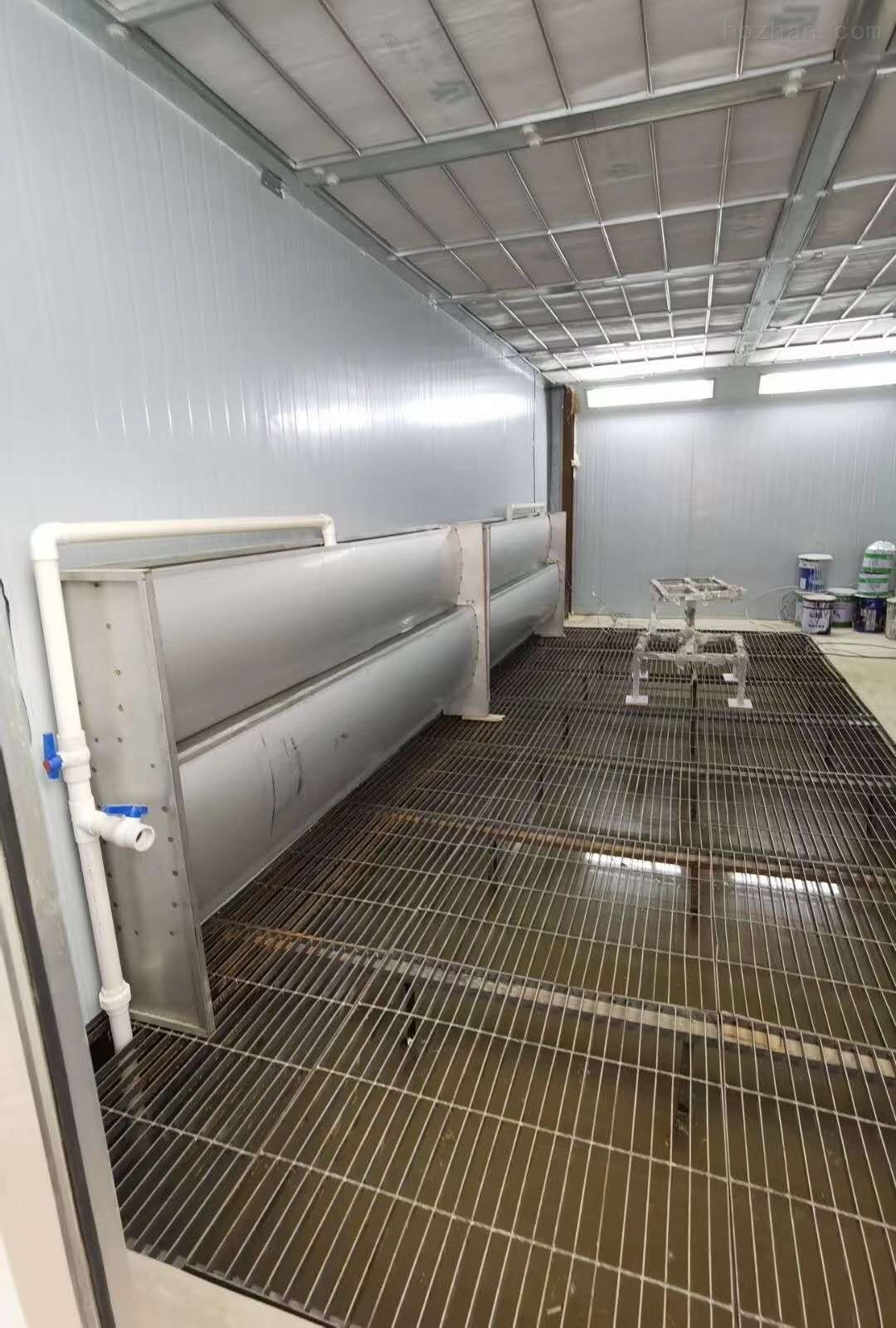

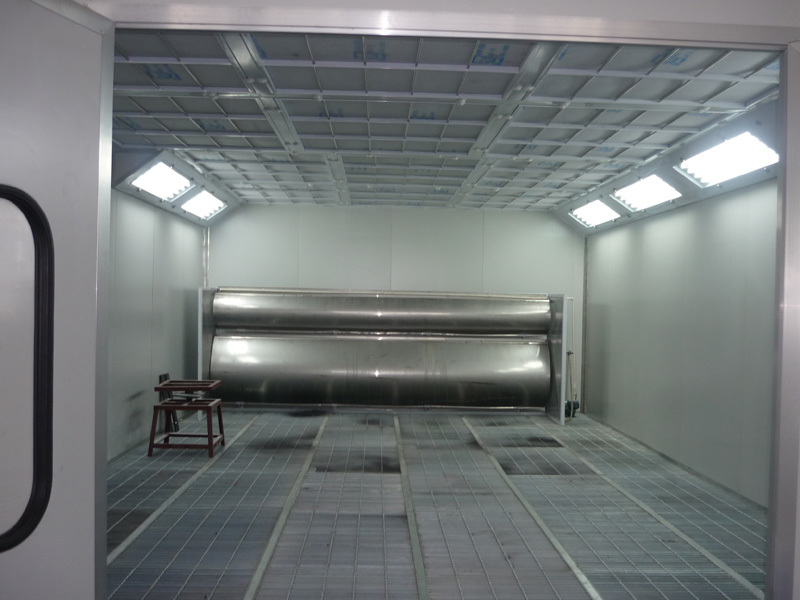

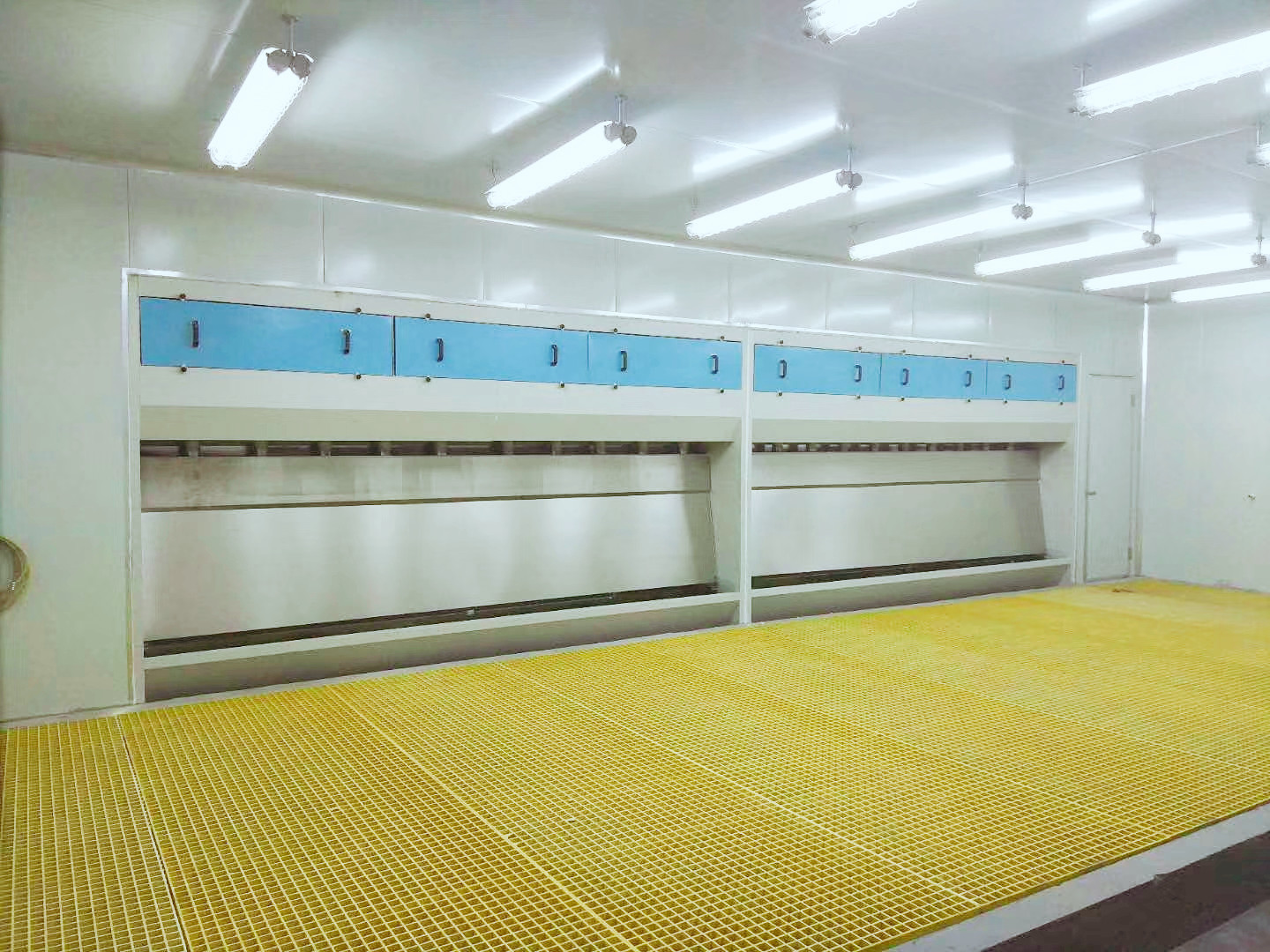

The 304 stainless steel water curtain cabinet (2000×1100×2400mm) combines industrial durability with smart efficiency. Its multi-layer water curtain system, powered by a 1.5KW pump and 2.2KW exhaust fan, effectively traps paint particles and eliminates odors. The electronic control interface allows customizable operation, ensuring optimal air filtration for a cleaner, safer workspace. Ideal for high-cleanliness environments like spray booths and industrial facilities, this cabinet excels in dust removal, temperature regulation, and odor neutralization.
Product details
size | 2000 × 1100 × 2400 mm (L×W×H) |
Features | The characteristic of the water curtain cabinet is that the remaining paint powder during spray painting can be directly sprayed into the pool or the water curtain surface, while the odor generated during spray painting and a small amount of unadsorbed paint powder are filtered through the multi-layer water curtain and then discharged to the exhaust fan. Outside the spray painting room, it can purify the spray painting working environment and protect personal health, and can also enhance the smoothness of the surface of the painted workpiece. |
structure | All 1.5mm thick 304 stainless steel bending and splicing in bulk (can be shipped as a whole) |
water pump | Adopt vertical 1.5KW pipeline pump, lift 15m, flow ≥25m³/h; |
PVC pipe | DN50PVC pipes connect water pumps and water curtains to ensure water circulation |
Exhaust system |
1 single inlet axial flow fan, pulley drive, single motor power: 2.2KW; total flow: 12000m3 /h, equipped with manual adjustment damper . |
Electronic control |
Fan switch, water pump switch, fault indicator light, power switch, emergency stop switch |
Pipeline system
|
The air supply and exhaust are each equipped with 3 sections of 6 00 x 6 00 x 1000mm straight air ducts, 1 section of 6 00 x 6 00mm 90° elbow, and 1 section of 6 00 x 6 00mm 45° elbow; |
total power | 4KW |
Special Note | Can be customized according to site requirements |
Water Filtration is an environmental protection equipment used for waste paint exhaust gas treatment. It is
mainly used for spray painting exhaust gas treatment in spray painting assembly line workshops in various
industries. It has the advantages of simple operation, stable use and safety.
